RFD Series Home Vacuum Freeze Dryer Small Food Freeze Drying Machine for Fruits Vegetables Meat Seafood Herbs Snacks
The household vacuum freeze dryer is a compact and powerful machine designed for families who want to enjoy the benefits of freeze-drying technology at home. Once used mainly in laboratories and industry, this technology is now popular for home food storage, DIY projects, and long-term nutrition retention. With a small freeze dryer, you can easily preserve fruits, vegetables, meat, seafood, herbs, and even snacks like candy or yogurt.
Downloads
Freeze dryer, also called a lyophilizer, gently removes moisture through low-temperature freezing and vacuum sublimation. It preserves color, nutrients, aroma, and activity, making it ideal for food, pharmaceuticals, biotechnology, herbs, and pet food. We offer household to industrial models for both small-batch research and large-scale production.

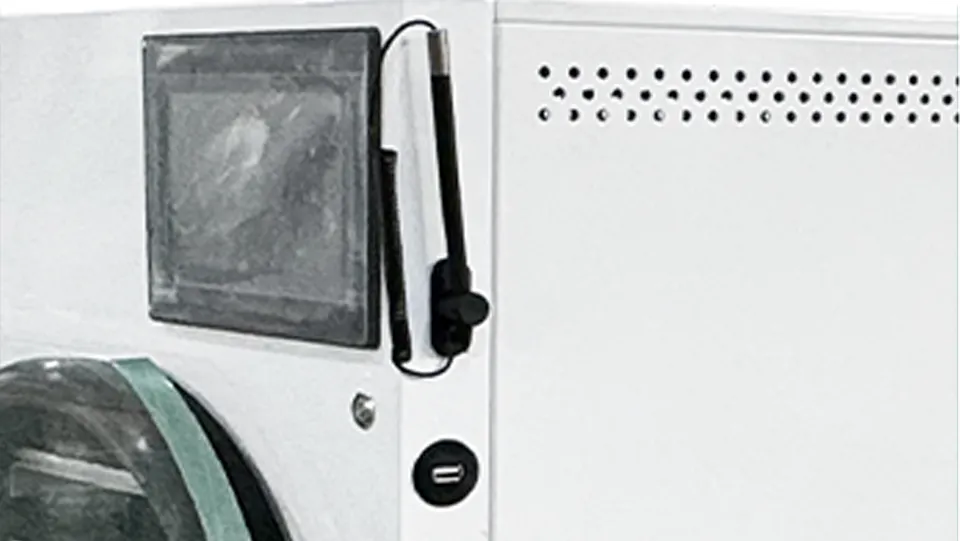

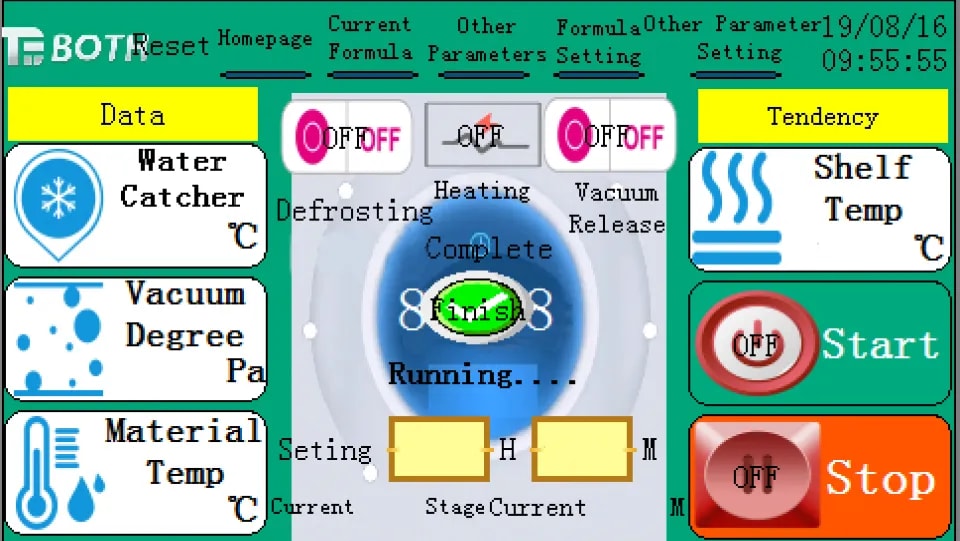

① 4.3" HD YKHMI touch screen with one-click operation, paired with a high-sensitivity stylus for smooth control.

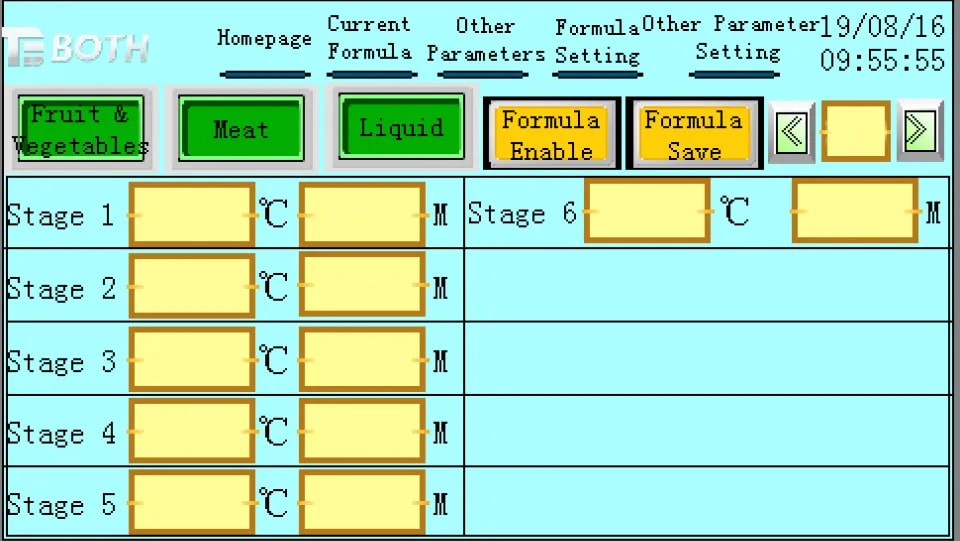

② Built-in freeze-drying formulas: 3 presets for fruits & vegetables, meat, and liquids, plus 2 customizable programs based on material characteristics.
③ Vacuum protection during heating, with high-precision temperature control and over-temperature protection for heat-sensitive materials.
④ Full process data is automatically recorded and can be exported via USB.

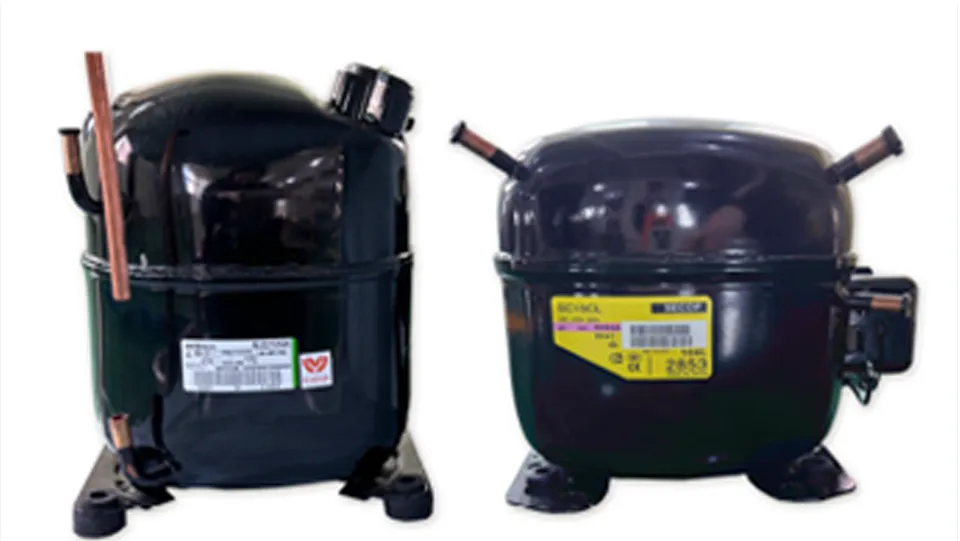

⑤ Equipped with reliable German SECOP and Brazilian EMBRACO compressors for stable cooling and longer lifespan.

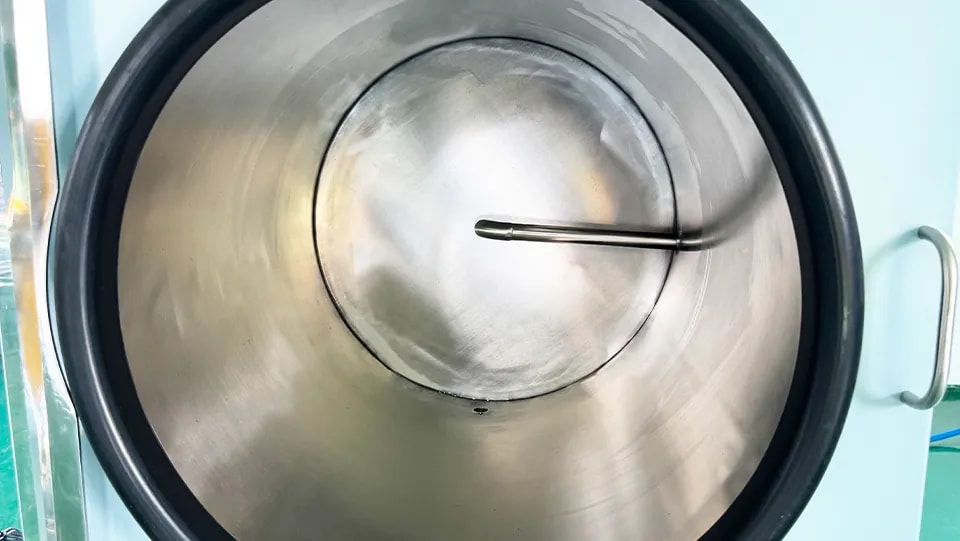

⑥ Cold trap and trays are made of SUS304 food-grade stainless steel with 600-grit polished surfaces.
Compressor
Display Screen
Procedure
Stylus
SUS304

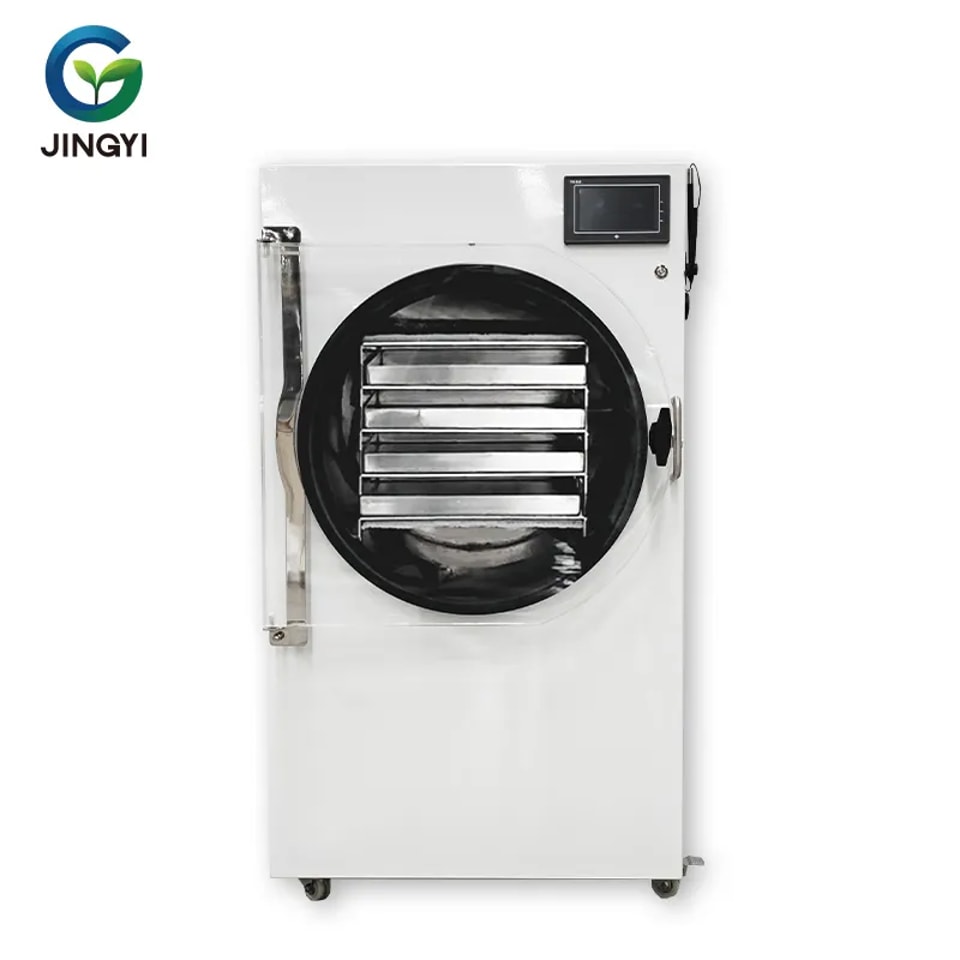

| Model | RFD-3 | RFD-5 | RFD-8 | RFD-10 | RFD-15 |
| Freeze-dried Area(M2) | 0.3M2 | 0.5M2 | 0.8M2 | 1.0M2 | 1.5M2 |
| Handling Capacity(Kg/Batch) | 3~5Kg/Batch | 5~7Kg/Batch | 8~10Kg/Batch | 10~12Kg/Batch | 15~20Kg/Batch |
| Cold Trap Temperature(℃) | -40℃（No-load） | -50℃（No-load） | |||
| Maximum Ice Capacity/Water Catch(Kg) | 3Kg | 5Kg | 8kg | 10kg | 15kg |
| Layer Spacing(mm) | 40mm | ||||
| Tray Size(mm) | 350*220*25mm 4Pcs | 450*220*25mm 5Pcs | 560*300*25mm 6Pcs | 560*300*25mm 6Pcs | 560*350*25mm 8Pcs |
| Ultimate Vacuum（Pa） | 5pa（No-load） | ||||
| Vacuum Pump Type | 2XZ-2B | 2XZ-2B | 2XZ-4B | 2XZ-4B | 2XZ-6B |
| Pumping Speed(L/S) | 2L/S | 2L/S | 4L/S | 4L/S | 6L/S |
| Noise(dB) | 61dB | 61dB | 62dB | 62dB | 62dB |
| Power(W) | 1085W | 1495W | 2600W | 3900W | 4950w |
| Power Supply | 220V/60HZ or Custom | ||||
| Weight(Kg) | 80Kg | 100Kg | 130Kg | 160Kg | 260Kg |
| Dimension(mm) | 540*480*800mm | 520*690*940mm | 690*600*1010mm | 740*560*1050mm | 790*660*1250mm |

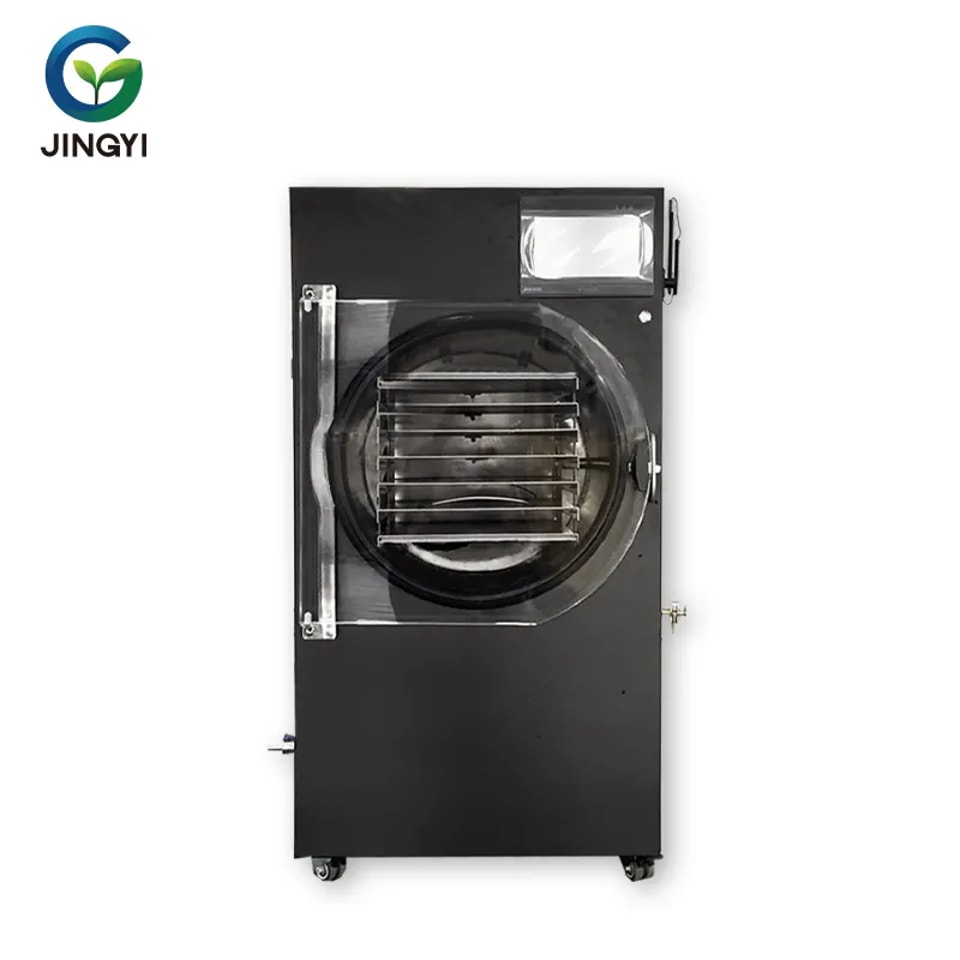

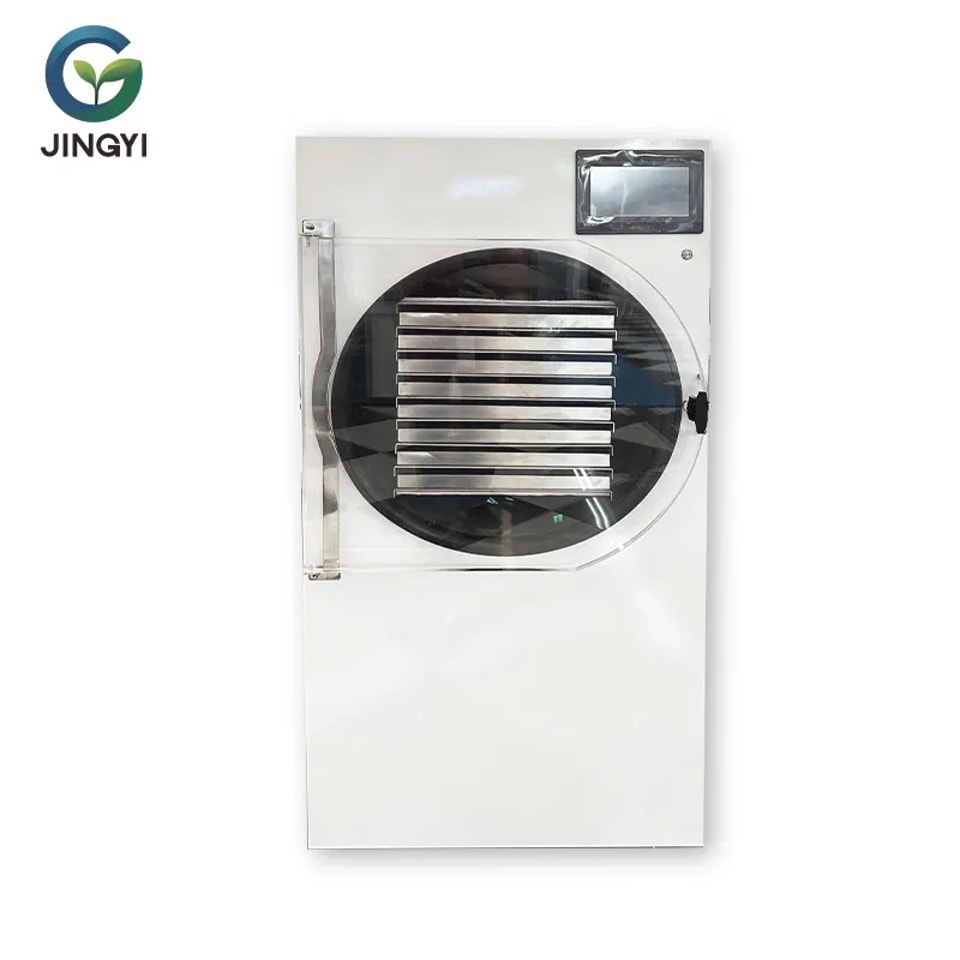

| Model | RFD-3 Pro | RFD-5 Pro | RFD-8 Pro | RFD-10 Pro | RFD-15 Pro |
| Freeze-dried Area(M2) | 0.3M2 | 0.5M2 | 0.8M2 | 1.0M2 | 1.5M2 |
| Handling Capacity(Kg/Batch) | 3~5Kg/Batch | 5~7Kg/Batch | 8~10Kg/Batch | 10~12Kg/Batch | 15~20Kg/Batch |
| Cold Trap Temperature(℃) | -40℃（No-load） | -50℃（No-load） | |||
| Maximum Ice Capacity/Water Catch(Kg) | 3Kg | 5Kg | 8kg | 10kg | 15kg |
| Layer Spacing(mm) | 40mm | ||||
| Tray Size(mm) | 350*220*25mm 4Pcs | 450*220*25mm 5Pcs | 560*300*25mm 6Pcs | 560*300*25mm 6Pcs | 560*350*25mm 8Pcs |
| Ultimate Vacuum（Pa） | 5pa（No-load） | ||||
| Vacuum Pump Type | 2XZ-2B | 2XZ-2B | 2XZ-4B | 2XZ-4B | 2XZ-6B |
| Pumping Speed(L/S) | 2L/S | 2L/S | 4L/S | 4L/S | 6L/S |
| Noise(dB) | 61dB | 61dB | 62dB | 62dB | 62dB |
| Power(W) | 1085W | 1495W | 2600W | 3900W | 4950w |
| Power Supply | 220V/60HZ or Custom | ||||
| Weight(Kg) | 106Kg | 123Kg | 156Kg | 190Kg | 290Kg |
| Dimension(mm) | 590*500*880mm | 690*520*980mm | 690*600*1070mm | 800*600*1160mm | 750*700*1450mm |
Our household to industrial freeze dryers can process fruits, vegetables, meats, herbs, pet food, dairy products, coffee, powders, and biological samples. Real cases include freeze-dried strawberries, lemons, limes, dragon fruit, apples, tomatoes, cilantro, chicken breast, and beef—showing stable quality and high nutrient retention across diverse materials and industries.
Freeze-Dried Strawberry
Freeze-Dried Orange
Freeze-Dried Fruits and Vegetables
Freeze-Dried Tomatoes
Freeze-Dried Meat
Freeze Dryer Freeze-Dried
Freeze-Dried Flowers
Freeze-Dried Lime
Biotechnology & Research
Floral & Herbal Industry
Food Industry
Pharmaceutical Industry
Our manufacturing strength is built on three large production bases covering 30,000 m², equipped with advanced facilities such as laser cutting machines, CNC bending systems, rolling machines, automated welding equipment, and welding robots. With 137 skilled employees—including 73 senior technicians and 7 engineers—our team has accumulated 17 years of hands-on industry experience and user insights. This strong technical foundation enables powerful OEM/ODM capabilities and full turnkey freeze-drying production line solutions for global customers.
.webp)
We use reliable, long-tested packaging methods to ensure safe delivery of every product. Depending on the machine’s size and weight, we prepare reinforced plywood crates or durable carton boxes with internal supports. Packaging can also be customized according to your requirements, allowing you to choose the format that best suits your shipping needs.
· 18+ Years Experience of Freeze Drying Equipment
· Provide Complete Food Processing Turnkey Solutions
· 3 modern manufacturing bases covering over 30,000 m²
· Promise production & on-time delivery
· CE & ISO quality guarantee
· Offer parts for free if have quality issues
