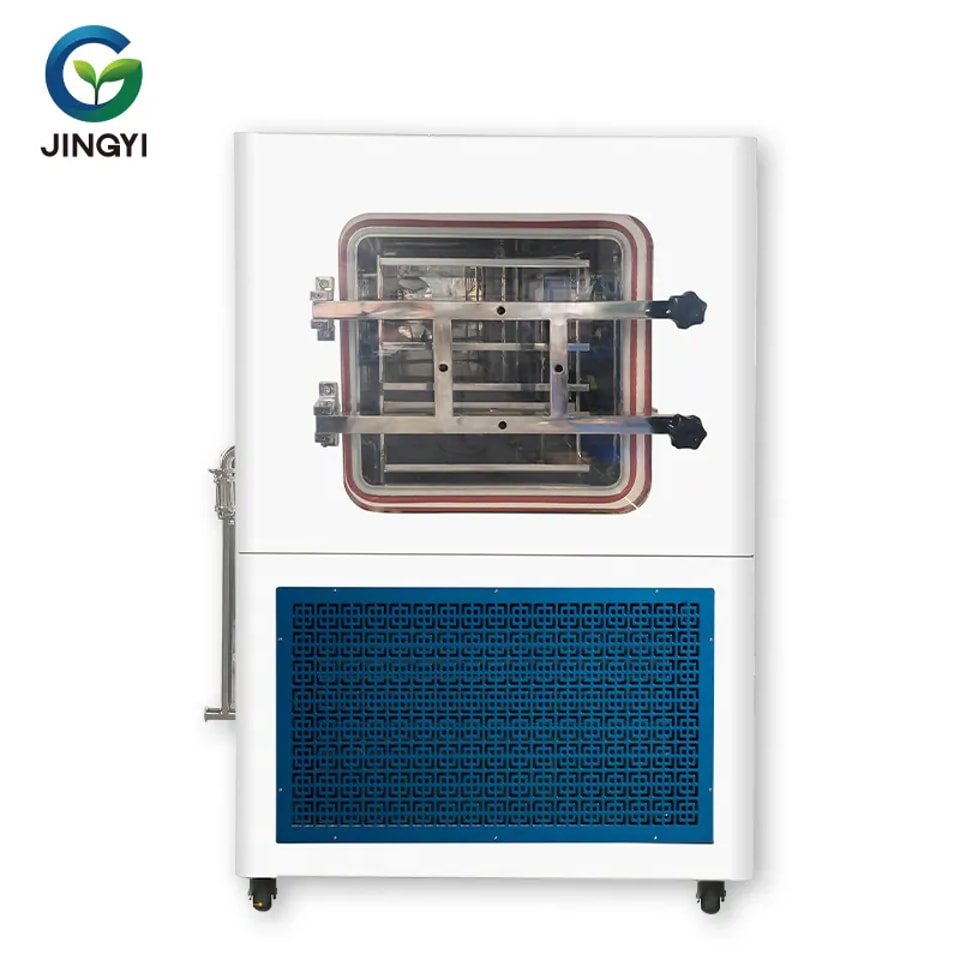

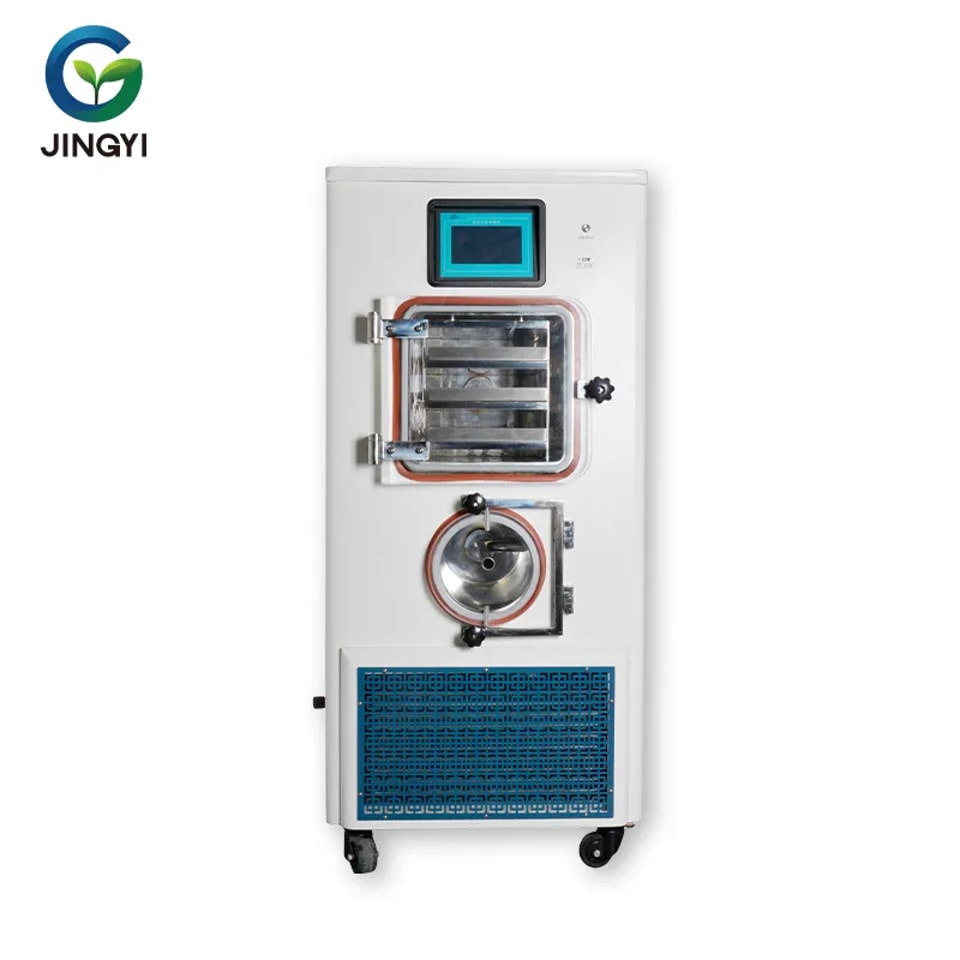

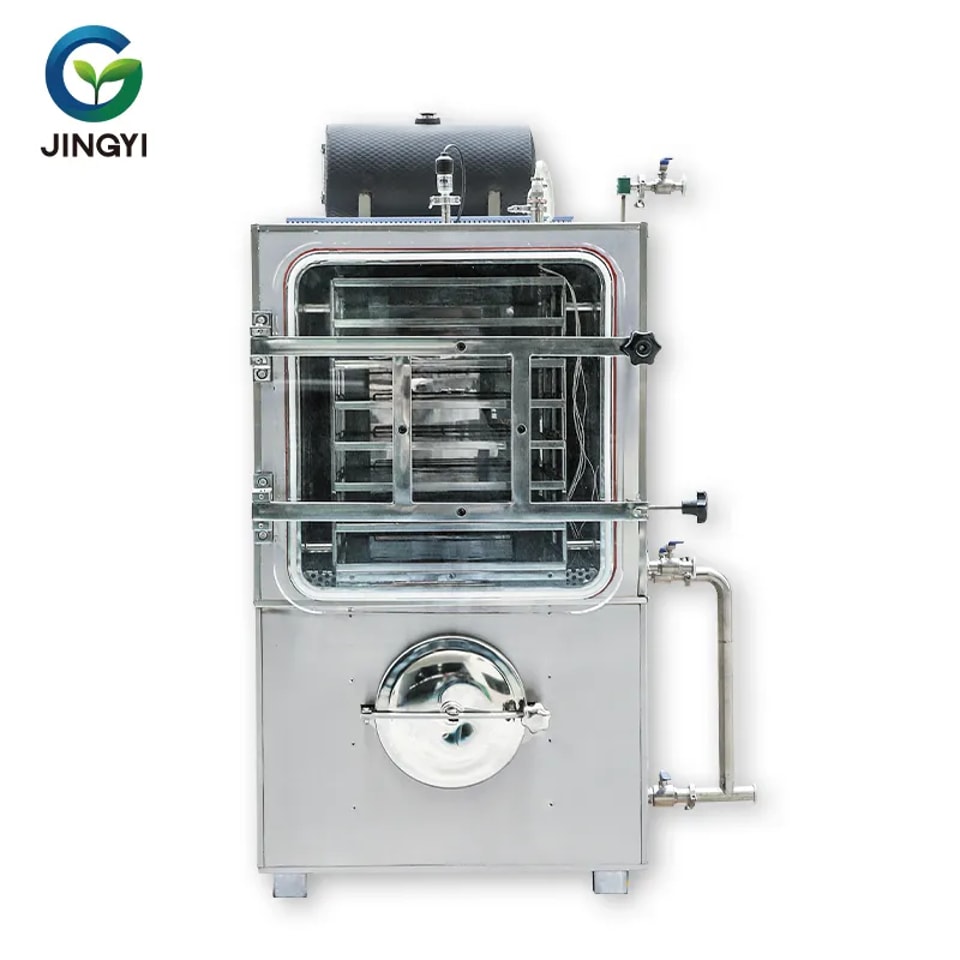

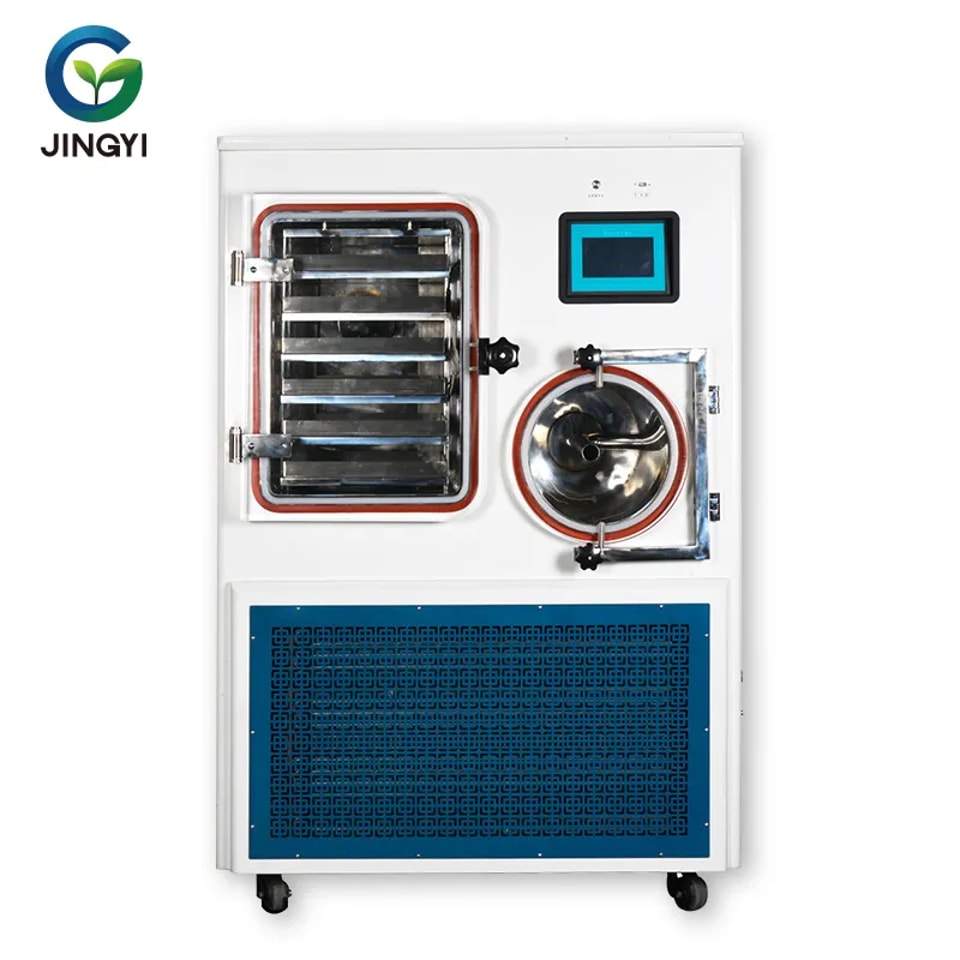

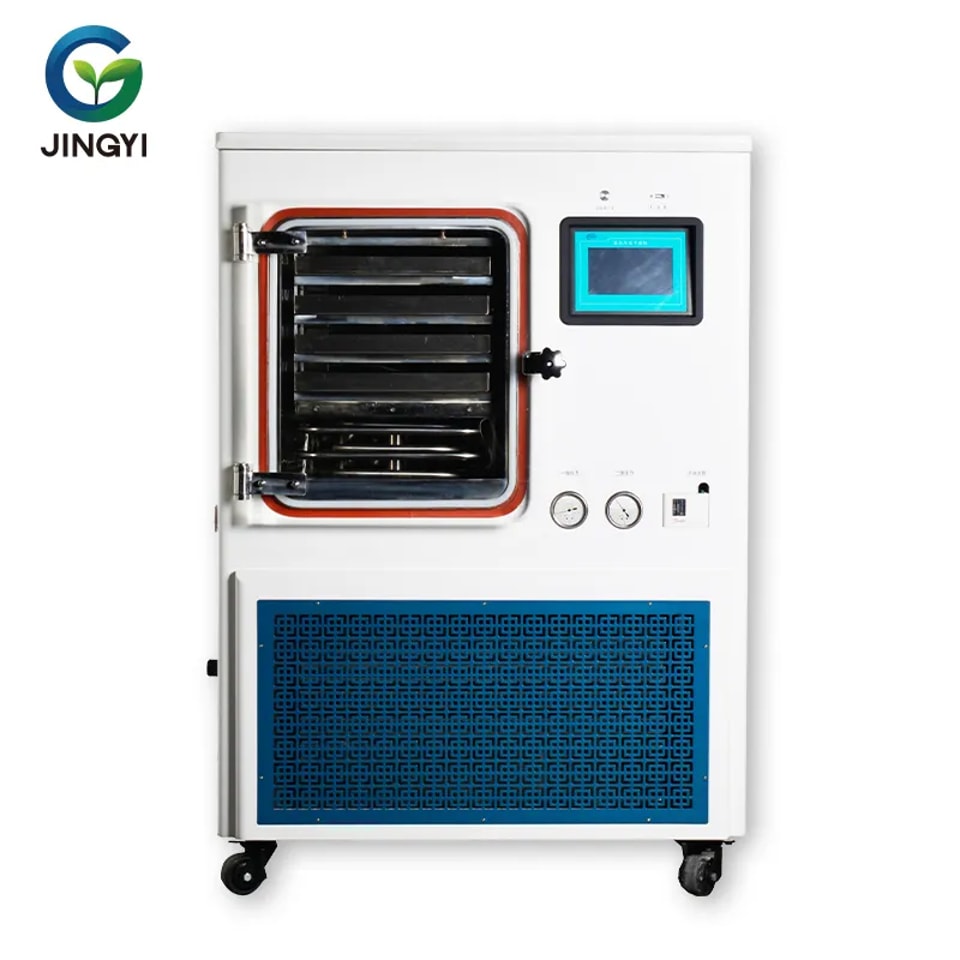

PFD Series Pilot Freeze Dryer Pilot Scale Lyophilizer Medium Capacity Freeze Drying Machine for Food Herbs Pharmaceuticals Biotechnology
The Pilot Scale Vacuum Freeze Dryer has changed the tedious operation of the traditional drying process, prevented the pollution of materials, and realized the automation of drying sublimation. The dryer has the function of shelf heating and programming, can remember the freeze-drying curve, Comes with USB flash drive output function, convenient for users to observe the freeze-drying process of mate.
Freeze dryer, also called a lyophilizer, gently removes moisture through low-temperature freezing and vacuum sublimation. It preserves color, nutrients, aroma, and activity, making it ideal for food, pharmaceuticals, biotechnology, herbs, and pet food. We offer household to industrial models for both small-batch research and large-scale production.

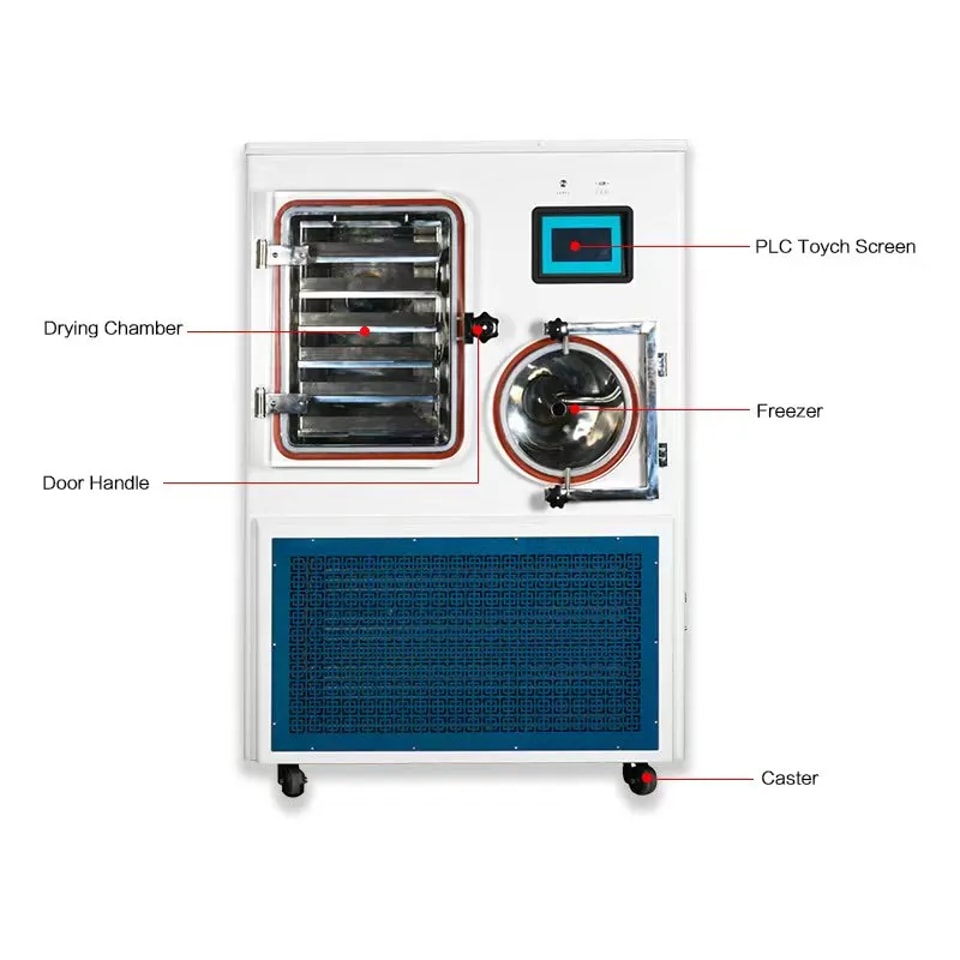

①The sealing door of the drying chamber is made of aviation grade acrylic material, high strength without leakage.
② Seven inch real color industrial touch screen, high control precision,stable performance, easy to operate without instruction manual.
③ International famous brand compressor, high efficiency,energy saving, more stable.
④ Manual, automatic mode selection, manual mode is used to explore the process; Automatic mode for mature process, one click operation.
⑤ Monitoring screen; Real-time monitoring of shelf temperature, cold trap temperature, vacuum degree and other operating states.
⑥ Freeze-drying curve query function, you can view the temperature,vacuum and other curves at any time.
⑦Set the user level permission password to access the operation management by permission.
| Model | PFD-20 | PFD-30 | PFD-50 | PFD-100 | PFD-200 | PFD-300 |
| Freeze-dried Area(M2) | 0.3 | 0.4 | 0.6 | 1.0 | 2.25 | 3.15 |
| Process Capacity /Bath | 3-5KG/batch | 4-6KG/batch | 6-8KG/batch | 10-15KG/batch | 30KG/batch | 45KG/batch |
| Cold Trap Coil Temperature(℃） | <-75 (No load) | |||||
| Water Catching Capacity(Kg/24h) | >4KG/24 | >6KG/24 | >8KG/24 | >20KG/24 | >20KG/24 | >45KG/24 |
| Defrosting Mode | High Temperature Defrosting | Natural Defrosting | High Temperature Defrosting | Electrical Heated Defrosting | Water Soaking | |
| Shelf Temperature Range(℃) | -50~70 | |||||
| Shelf(mm) | Shelf 3+1 layer, Shelf Spacing 50, Shelf Size 270*400*15 |
Shelf 4+1 layer, Shelf Spacing 50, Shelf Size 300*340*15 |
Shelf 4+1 layer, Shelf Spacing 70, Shelf Size 360*480*18 |
Shelf 6+1 layer, Shelf Spacing 70, Shelf Size 360*480*18 |
Shelf 5+1 layer, Shelf Spacing 80, Shelf Size 505*905*18 |
Shelf 7+1 layer, Shelf Spacing 60, Shelf Size 505*905*18 |
| Material Tray(mm) | 3 Material Tray, Size 265*395*30 | 4 Material Tray, Size 295*335*30 | 4 Material Tray, Size 355*475*35 | 6 Material Tray, Size 355*475*30 | 10 Material Tray, Size 500*450*30 | 14 Material Tray, Size 500*450*30 |
| Ultimate Vacuum(pa) | ≤5pa | |||||
| Vacuum Pump Model | 2XZ-4 | DVP-24 | DVP-36 | DVP-48 | DVP-48 | DVP-48 |
| Pumping Rate(L/S) | 4L/S | 6L/S | 8L/S | 16L/S | 16L/S | 16L/S |
| Total Power(w) | 3500 | 4500 | 5500 | 6500 | 10500 | 14500 |
| Main Power Supply(VAC/HZ) | 220/50 | 220/50(Optional380/50) | 3 Phase 5 Line 380/50 | |||
| Main Engine Size(mm) | 800*800*1550 | 880*735*1320 | 960*785*1450 | 1020*780*1770 | 1200*1200*1830+350 (Oil Storage Tank) |
850*2500*1700+350 (Oil Storage Tank) |
| Net Weight(Kg) | 315 | 333 | 447 | 561 | 950 | 1275 |
| Package Size(mm) | 900*820*1650 | 995*860*1420 | 1090*935*1570 | 1220*950*1770 | 1445*2255*2100 | 1000*2820*2220 |
| Gross Weight(Kg) | 361 | 380 | 491 | 650 | 1100 | 1635 |
Biotechnology & Research
Floral & Herbal Industry
Food Industry
Pharmaceutical Industry
Our household to industrial freeze dryers can process fruits, vegetables, meats, herbs, pet food, dairy products, coffee, powders, and biological samples. Real cases include freeze-dried strawberries, lemons, limes, dragon fruit, apples, tomatoes, cilantro, chicken breast, and beef—showing stable quality and high nutrient retention across diverse materials and industries.
Freeze-Dried Strawberry
Freeze-Dried Orange
Freeze-Dried Fruits and Vegetables
Freeze-Dried Tomatoes
Freeze-Dried Meat
Freeze Dryer Freeze-Dried
Freeze-Dried Flowers
Freeze-Dried Lime
Our manufacturing strength is built on three large production bases covering 30,000 m², equipped with advanced facilities such as laser cutting machines, CNC bending systems, rolling machines, automated welding equipment, and welding robots. With 137 skilled employees—including 73 senior technicians and 7 engineers—our team has accumulated 17 years of hands-on industry experience and user insights. This strong technical foundation enables powerful OEM/ODM capabilities and full turnkey freeze-drying production line solutions for global customers.
.webp)
We use reliable, long-tested packaging methods to ensure safe delivery of every product. Depending on the machine’s size and weight, we prepare reinforced plywood crates or durable carton boxes with internal supports. Packaging can also be customized according to your requirements, allowing you to choose the format that best suits your shipping needs.
· 18+ Years Experience of Freeze Drying Equipment
· Provide Complete Food Processing Turnkey Solutions
· 3 modern manufacturing bases covering over 30,000 m²
· Promise production & on-time delivery
· CE & ISO quality guarantee
· Offer parts for free if have quality issues
